Characteristics

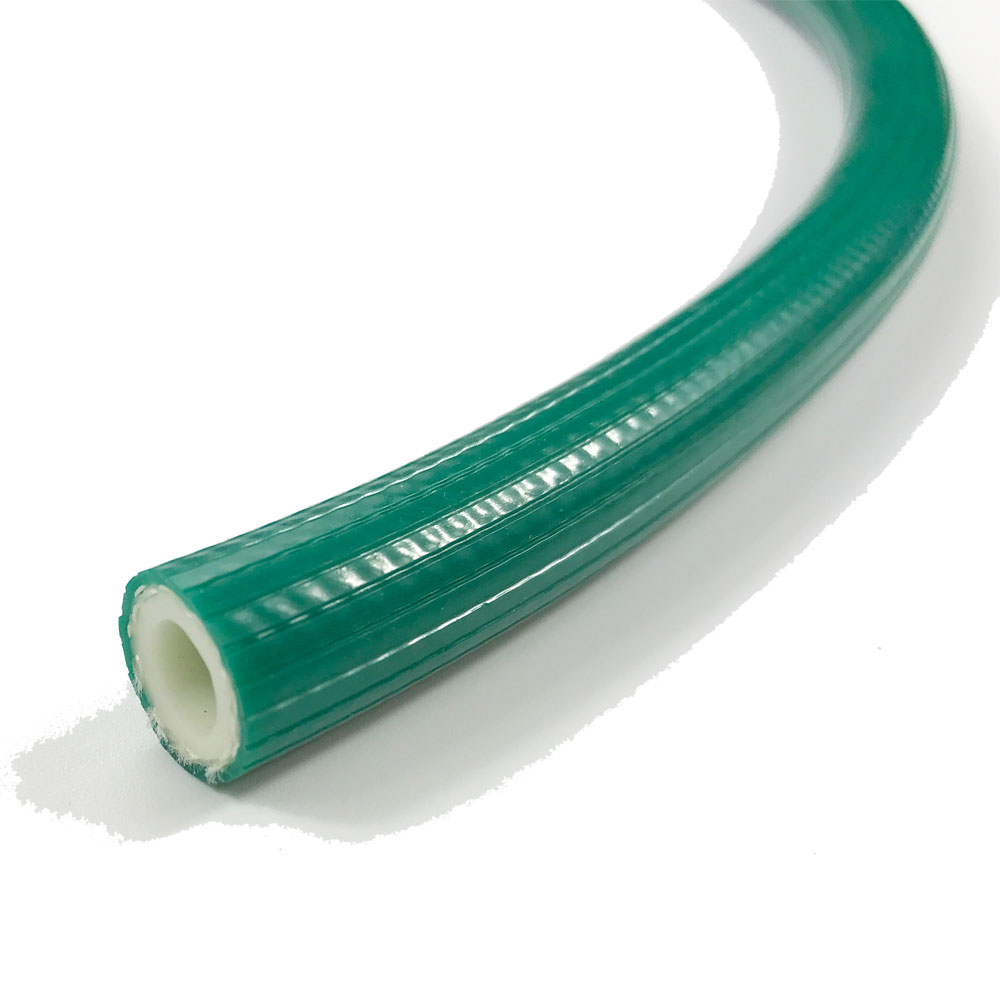

Made from good quality PVC and rubber compound, the hose is flexible, elastic, safe and easy to seal.
Application
Being used for conveying gas and liquid under low pressure. Specially Suitable for LPG in family.
Construction
Inner Layer-high quality PVC material
Reinforcement-Polyester fiber,Textile Yarn
Outer Layer-high quality PVC material,abrasive resistant
Temperature -10℃ ～65℃
| Item Code | I.D | I.D | O.D | Length | W.P. | W.P. | B.P. | B.P. | Weight | Volume |
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | m/roll | psi | bar | psi | bar | kg/roll | m3 | |
| PPG-06 | 1/4" | 6 | 11 | 100 | 290 | 20 | 870 | 60 | 8.81 | 0.038 |
| PPG-09 | 5/16" | 8 | 13.5 | 100 | 290 | 20 | 870 | 60 | 11.4 | 0.065 |
| PPG-10 | 3/8" | 10 | 16 | 100 | 290 | 20 | 870 | 60 | 12.95 | 0.075 |
| PPG-13 | 1/2" | 13 | 20 | 100 | 290 | 20 | 870 | 60 | 16.06 | 0.085 |
| PPG-16 | 5/8" | 16 | 25 | 50 | 290 | 20 | 870 | 60 | 11.81 | 0.056 |
| PPG-19 | 3/4" | 19 | 28 | 50 | 217.5 | 15 | 652.5 | 45 | 16.32 | 0.057 |
| PPG-25 | 1" | 25 | 34 | 50 | 217.5 | 15 | 652.5 | 45 | 27.51 | 0.09 |
Materia:
100% virgin PVC materials,Non-toxic,Non smell.
High tensile polyester yarn.Good quality material make light weight,good flexibility,easy handling.
Soft and flexible.Anti abrasion,Anti-corrosion,Anti-aging
Workshop:
Our factory introduce advanced technology and equipment to make the bets quality PVC Gas Hose.
Packing:
In general, the packing will use woven bag and plastic film.
Special packing as customer request.Multiple modes of transportation available,
We can choose the most economical way for you.
Market & Exports: Our product has exported to over 30 countries,
including the United States, Britain, Brazil, Russia and so on.
Trade shows: we participate in overseas exhibitions every year.
1. 100% STRICT QUALITY CONTROL
2. 10YEARS ,DEDICATED TO PVC HOSE
3. STRONG TECHNOLOGY TEAM
4. STRONG SALES SERVICE TEAM
