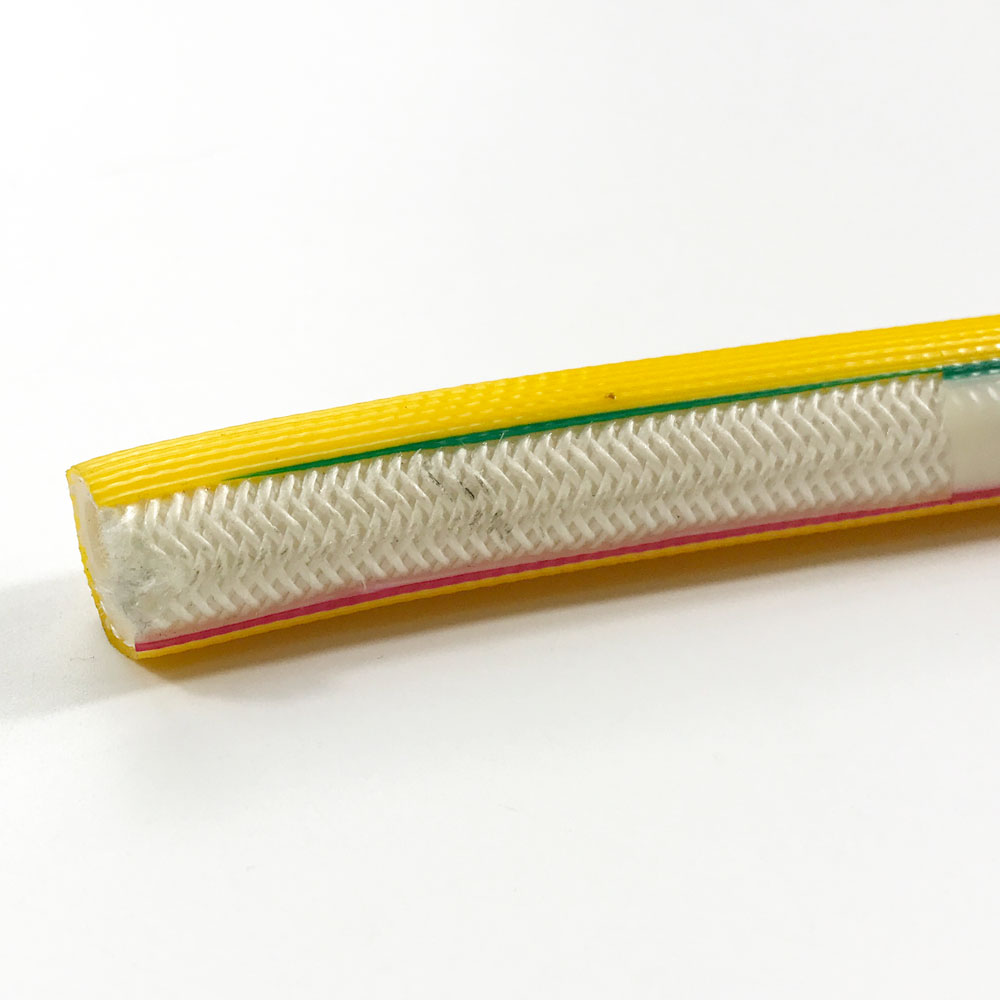

Material
1. PVC(outer layer): Anti-UV Anti-aging;
2. Middle Woven reinforced fabric: bending resistance, pressure resistance, anti-explosion;
3. PVC(Inner layer): low/high temperature resistance
Characteristics
Being made of tough PVC materials and high tensile polyester reinforcement.
It is light, flexible, durable,anti-erosion,acid,alkali Good flexible and adaptability against climate.
Standard length: 50m, 100m
Temperature: -5℃ ～65℃
Application
The hose is widely used in high pressure industrial, compressors, service station and pneumatic tools.
In agriculture, delivery pressure hose of pesticide,fungicide,fertilize solution also containing mineral oils for agriculture spraying.
2 PVC and 1ply high pressure spray hose
| Item Code | I.D | I.D | O.D | W.P. | W.P. | B.P. | B.P. | Length |
|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | psi | bar | psi | bar | m/roll | |
| ROCT-06A | 1/4" | 6.5 | 11.5 | 624 | 43 | 1885 | 130 | 100 |
| ROCT-08A1 | 5/16" | 8 | 13 | 580 | 40 | 1740 | 120 | 100 |
| ROCT-08A2 | 5/16" | 8 | 13.5 | 580 | 40 | 1740 | 120 | 100 |
| ROCT-08A3 | 5/16" | 8.5 | 13.5 | 580 | 40 | 1740 | 120 | 100 |
| ROCT-08A4 | 5/16" | 8 | 14 | 580 | 40 | 1740 | 120 | 100 |
| ROCT-10A | 3/8" | 10 | 15 | 580 | 40 | 1740 | 120 | 100 |
3 PVC and 2 ply high pressure spray hose
| Item Code | I.D | I.D | O.D | W.P. | W.P. | B.P. | B.P. | Length |
|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | psi | bar | psi | bar | m/roll | |
| ROCC-06B | 1/4" | 6.5 | 12 | 870 | 60 | 2610 | 180 | 100 |
| ROCC-08B1 | 5/16" | 8 | 13.5 | 870 | 60 | 2610 | 180 | 100 |
| ROCC-08B2 | 5/16" | 8 | 14 | 870 | 60 | 2610 | 180 | 100 |
| ROCC-08B3 | 5/16" | 8.5 | 14 | 870 | 60 | 2610 | 180 | 100 |
| ROCC-10B | 3/8" | 10 | 16 | 725 | 50 | 2175 | 150 | 100 |
| ROCC-13B | 1/2" | 13 | 19 | 725 | 50 | 2030 | 140 | 100 |
Full Dense Braided High Pressure Spray Hose
| Item Code | I.D | I.D | O.D | W.P. | W.P. | B.P. | B.P. | Length |
|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | psi | bar | psi | bar | m/roll | |
| ROCE-06C | 1/4" | 6.5 | 12 | 899 | 62 | 2683 | 185 | 100 |
| ROCE-08C1 | 5/16" | 8 | 13.5 | 870 | 60 | 2610 | 180 | 100 |
| ROCE-08C2 | 5/16" | 8 | 14 | 870 | 60 | 2610 | 180 | 100 |
| ROCE-08C3 | 5/16" | 8.5 | 14 | 870 | 60 | 2610 | 180 | 100 |
| ROCE-10C | 3/8" | 10 | 16 | 798 | 55 | 2393 | 165 | 100 |
| ROCE-13C | 1/2" | 13 | 19 | 725 | 50 | 2175 | 150 | 100 |
Materia:
100% virgin PVC materials,Non-toxic,Non smell.
High tensile polyester yarn.Good quality material make light weight,good flexibility,easy handling.
Soft and flexible.Anti abrasion,Anti-corrosion,Anti-aging
Workshop:
Our factory introduce advanced technology and equipment to make the bets quality PVC Spray Hose.
Packing:
In general, the packing will use woven bag and plastic film.
Special packing as customer request.Multiple modes of transportation available,
We can choose the most economical way for you.
Market & Exports: Our product has exported to over 30 countries,
including the United States, Britain, Brazil, Russia and so on.
Trade shows: we participate in overseas exhibitions every year.
1. 100% STRICT QUALITY CONTROL
2. 10YEARS ,DEDICATED TO PVC HOSE
3. STRONG TECHNOLOGY TEAM
4. STRONG SALES SERVICE TEAM
