Inner tube: Internal Core in Polyamide
Reinforcement: 1 or 2 high tensile aramidic braid with antistatic polymerice braid
Outer tube: blue pin pricked polyurethane high abrasion resistance
Safety factor: 4:1
Application: high pressure airless spray systems,chemical resistance solvents and aggressive fluids
Temperature range: -40℃ (-40°F) – 100℃(+212°F)max.temperature recommended for water base
hydraulic fluids and air : +70℃ (+ 158°F)

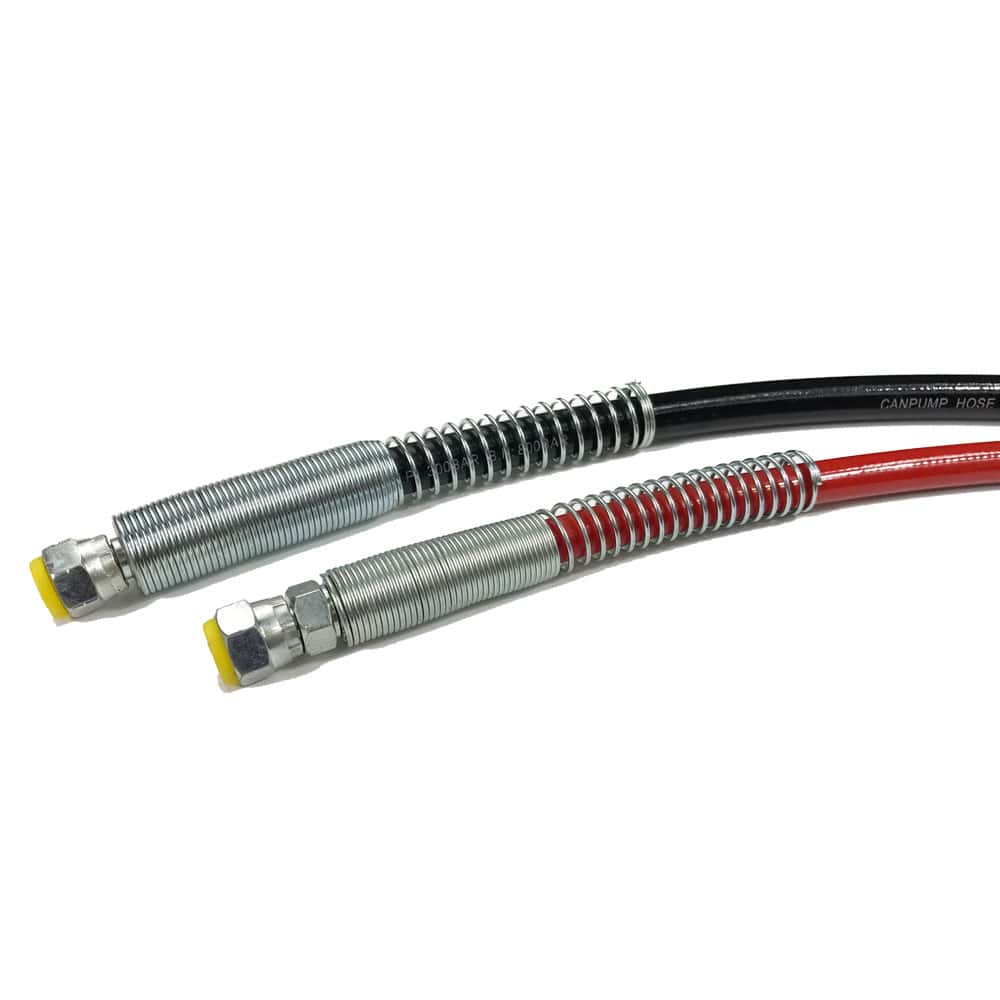

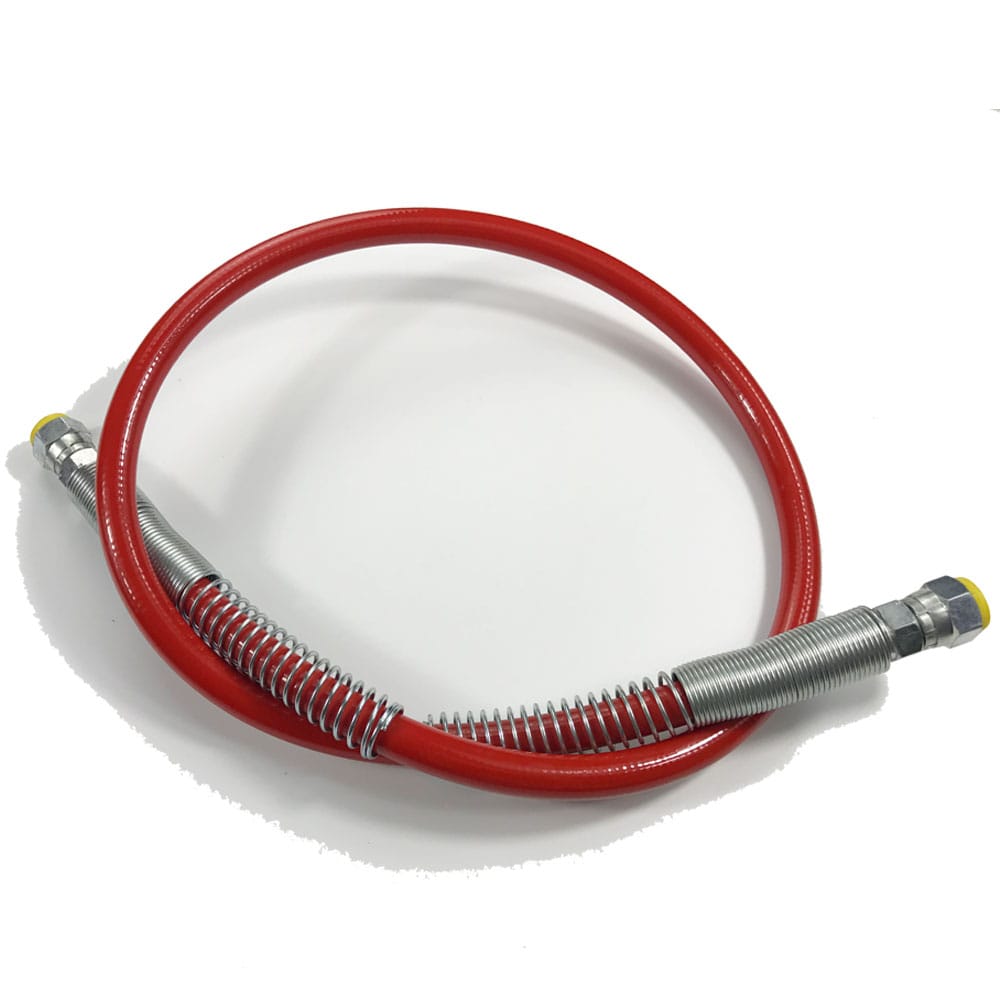

PAINT SPRAY HOSE | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Item code | Inter Diameter | Outer Diameter | Working pressure | Min Burst Pressure | Min Bend Radius | Weight | |||||
mm | inch | mm | inch | MPa | psi | MPa | psi | mm | Kg/m | ||
SPSH6.4-1 | 6.3 | 0.25 | 12.5 | 0.49 | 22.7 | 3292 | 68.1 | 9874.5 | 30 | 0.13 | |
SPSH6.4-2 | 6.3 | 0.25 | 14 | 0.55 | 40 | 5800 | 120 | 17400 | 55 | 0.21 | |
SPSH6.4-2 | 6.3 | 0.25 | 15.5 | 0.61 | 50 | 7250 | 150 | 21750 | 70 | 0.25 | |
SPFH8-1 | 8 | 0.3125 | 13.5 | 0.53 | 22.7 | 3292 | 68.1 | 9874.5 | 75 | 0.21 | |
SPSH8-2 | 8 | 0.3125 | 15 | 0.59 | 40 | 5800 | 120 | 17400 | 90 | 0.35 | |
SPSH8-3 | 8 | 0.3125 | 16.5 | 0.65 | 50 | 7250 | 150 | 21750 | 105 | 0.39 | |
SPSH10.0-1 | 10 | 0.375 | 16 | 0.62 | 22.7 | 3292 | 68.1 | 9874.5 | 80 | 0.31 | |
SPSH10.0-2 | 10 | 0.375 | 19.1 | 0.75 | 40 | 5800 | 120 | 17400 | 127 | 0.34 | |
SPSH10.0-3 | 10 | 0.375 | 21.5 | 0.85 | 50 | 7250 | 150 | 21750 | 135 | 0.4 |
