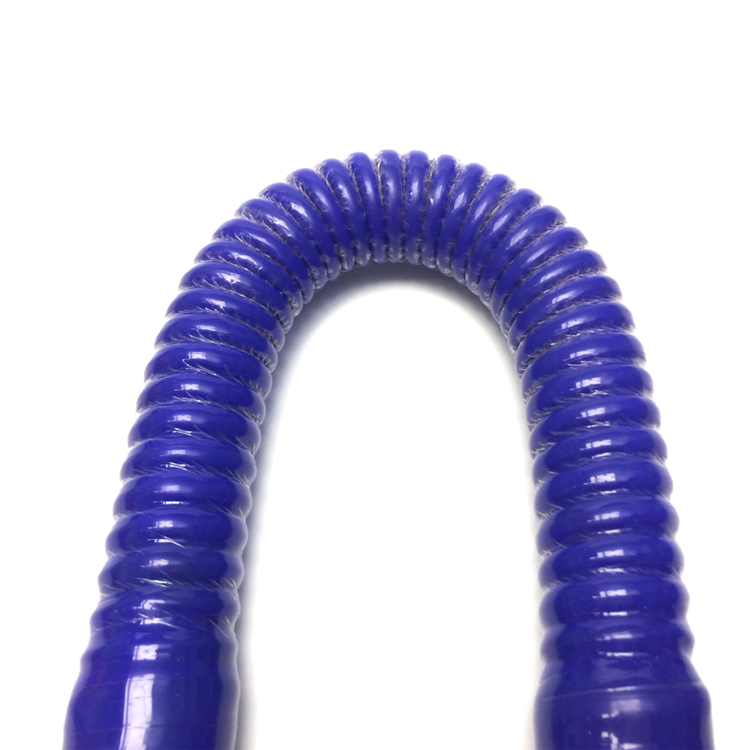

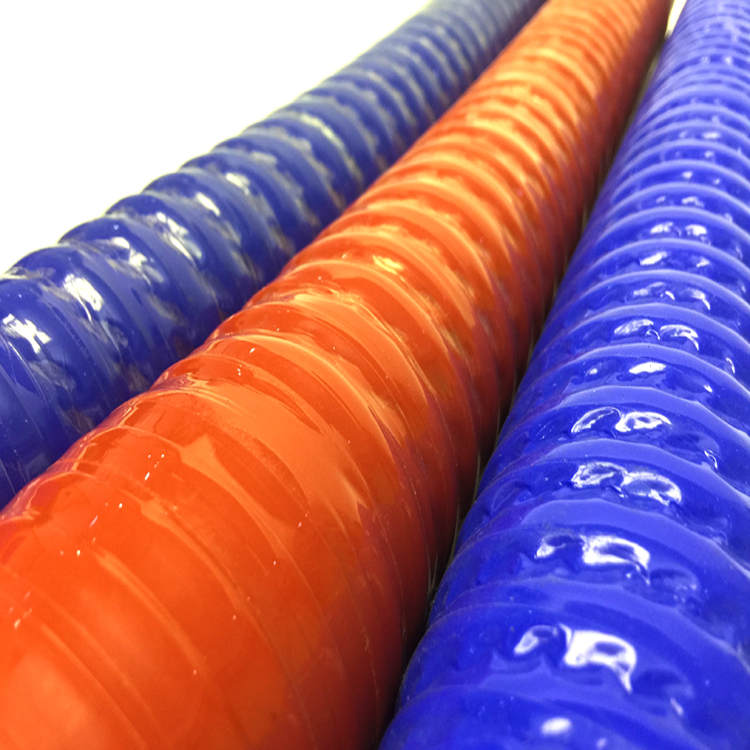

Silicone Corrugated Hose
Corrugated Silicone Hose is helix fabric reinforced and will not collapse under suction or in a bend. The corrugated cover allows the hose to bend for easy installation. It is resistant to exhaust fumes, ozone, mild chemicals, antifreeze and saltwater. The hose remains stable at elevated temperatures. Besides, it remains flexible in could weather. Because of the great properties, it has been served in many pleaces such as mine, marine and construction. While the applicatioon of such hose is still expanding.
Structure:
Inner: 100% High quality silicone
Cover: silicone
Reinforcement: 4ply Polyester/Aramid fabric with helix wire
Color: Black/Red/Blue/Green/Yellow
Application:
Corrugated silicone hose is mainly used in mine hydraulic support and oil exploration. Besides, it’s suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery agricultural machinery various machine tools.
Characteristic:
● 100% Virgin silicone materials
● Provides high pressure resistance and superior impulse resistance.
● Provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber
● Provides superior bonding in hose internal, soft use and small deformation under pressure
● Provides superior kink resistance and fatigue resistance and longer services life
● Working Pressure:0.3-1.2MPA
Temperature: -40℃ ( -104 ℉ ) to +220℃ (+428 ℉ )
